Optimized Heat Exchanger Designs and Performance Solutions

Koch Modular is an experienced source of complete design solutions for a wide range of heat exchanger types. We integrate process engineering expertise with thermal design proficiency to supply the optimal exchanger or troubleshoot an existing unit within a system. We work with clients to develop the thermal design basis, controls strategy, heat integration, and optimal exchanger type based on specific process objectives. Koch Modular provides full ASME code calculations and detailed design drawings for new heat exchangers. In addition, Koch Modular solves performance problems such as excessive pressure drop, temperature sensitivity, fouling, vibration, poor heat transfer, or limited capacity, by re-rating your existing exchanger.

KOCH-Modular-Website-SB-OurWork

Custom Fabricated Heat Exchanger Examples

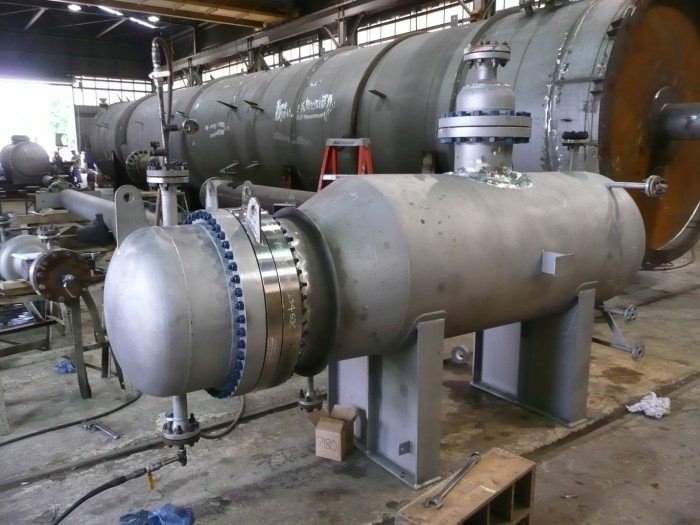

Kettle Reboiler

Kettle Reboiler

Common applications: evaporators, vaporizers, column reboiler

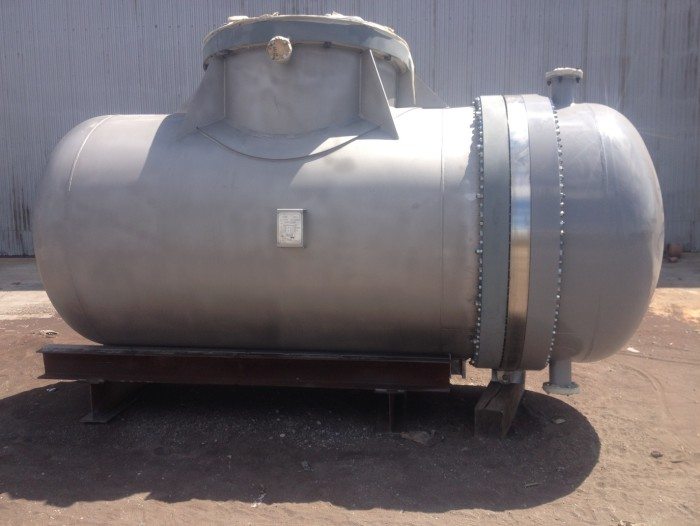

Shellside Knockback Condenser

Shellside Knockback Condenser

Common applications: deep vacuum

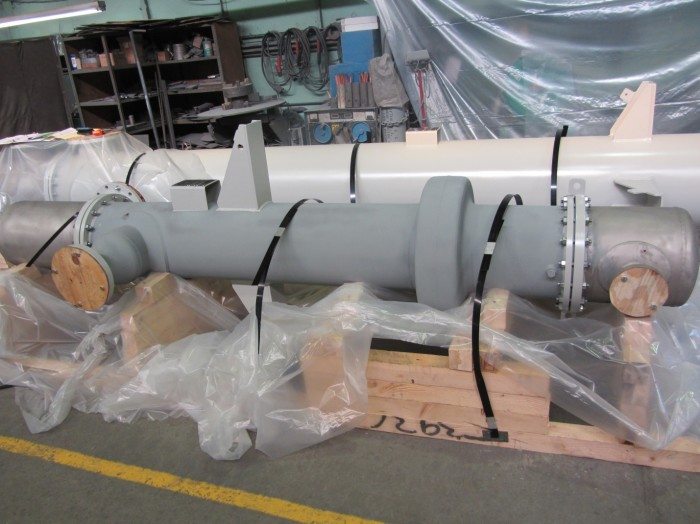

Straight Tube Forced Circulation Vaporizer

Straight Tube Forced Circulation Vaporizer

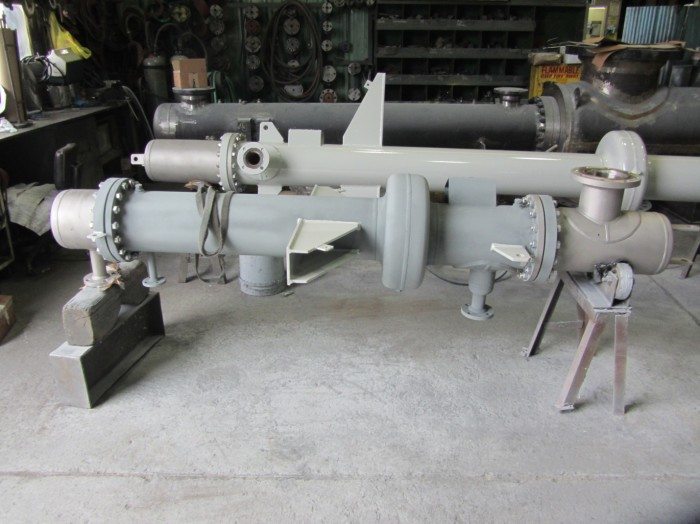

Straight Tube Thermosyphon Reboiler

Straight Tube Thermosiphon Reboiler

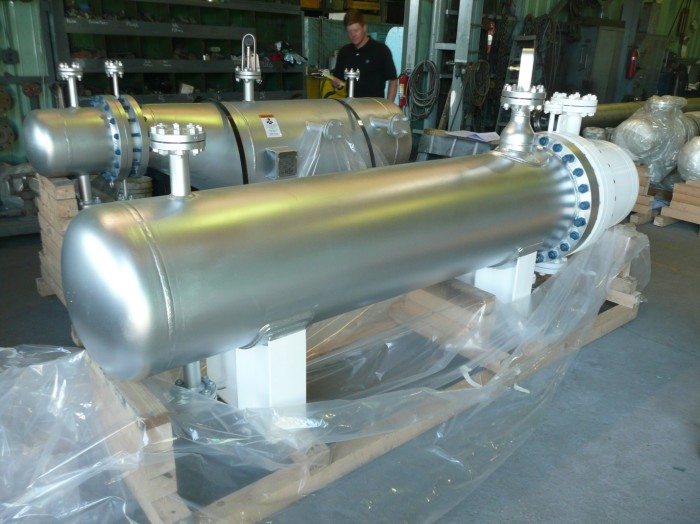

Shellside Condenser with Double Tubesheet and Leak Detection Gap

Shellside Condenser with Double Tubesheet and Leak Detection Gap

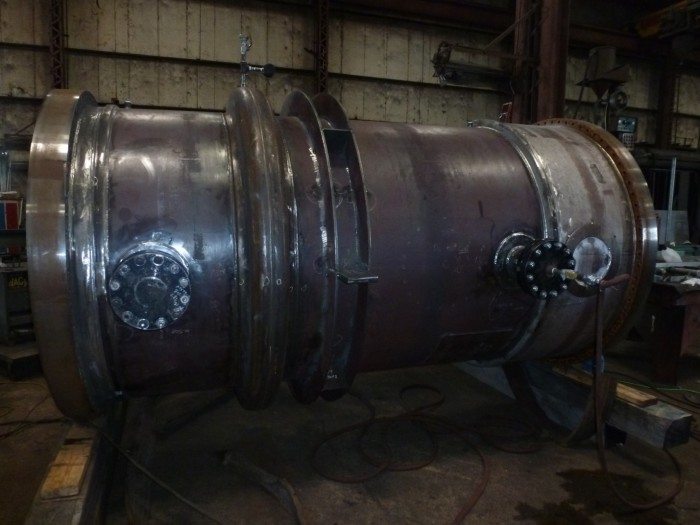

Falling Film Reboiler with Distribution Device

Falling Film Reboiler with Distribution Device

Common applications: evaporators, column reboilers. deep vacuum, temperature sensitive materials

Double Tubesheet U-tube Bundle

Double Tubesheet U-tube Bundle

Kettle Reboiler with Double Tubesheet and Leak Detection Gap

Kettle Reboiler with Double Tubesheet and Leak Detection Gap

Straight Tube Interchanger

Straight Tube Interchanger

Typical Heat Exchanger Designs and Apllications

  • Overhead-Condenser-Types-01
  • Overhead-Condenser-Types-02
  • Overhead-Condenser-Types-02
  • Overhead-Condenser-Types-02
  • Overhead-Condenser-Types-02

To get started with our optimized design please complete our online project inquiry form or fill out the detailed heat exchanger design specific inquiry form below.
